XRC series slope man car is the safety personnel transportation equipment of all kinds of mining slope roadway, which is suitable for the slope roadway that gradient is less than 30. The slope man car
Contact Us Product Center

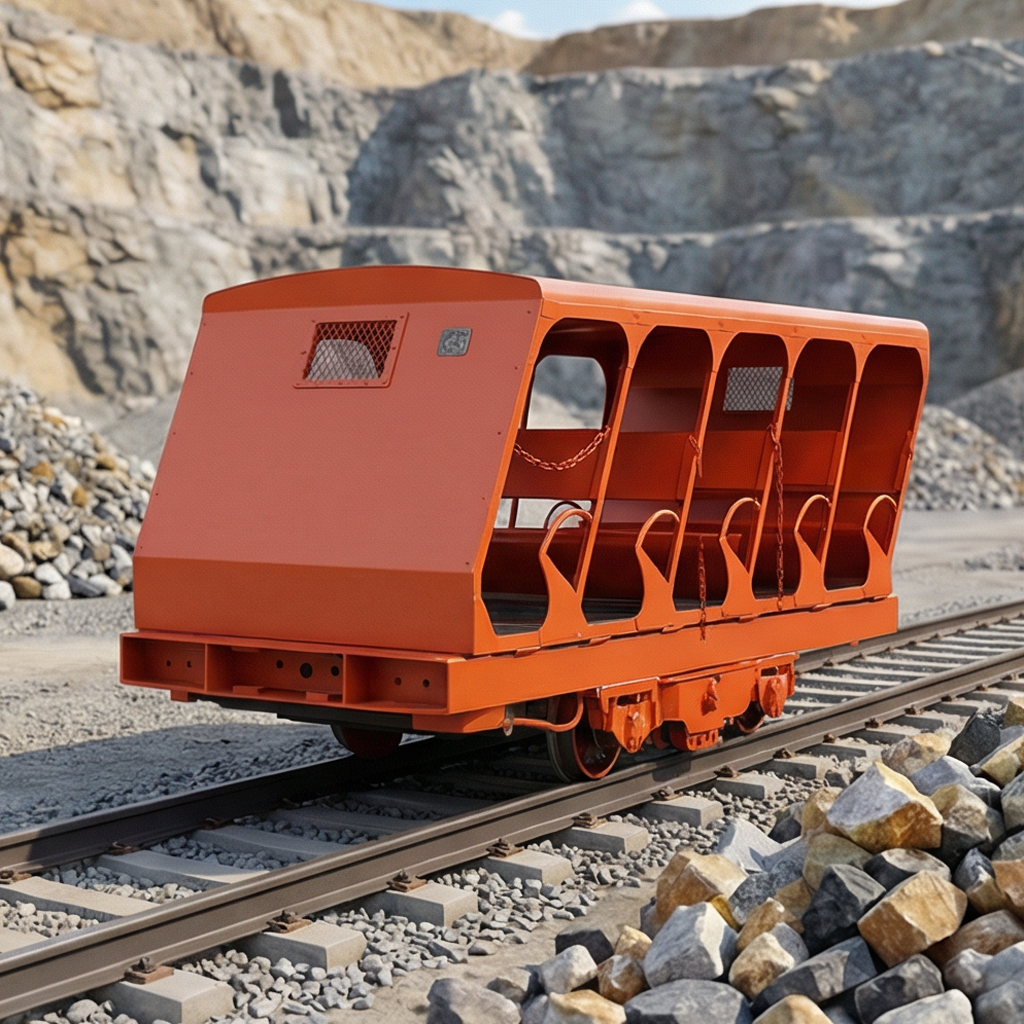

XRC series slope man car is the safety personnel transportation equipment of all kinds of mining slope roadway, which is suitable for the slope roadway that gradient is less than 30. The slope man car is driven by electric winch, which are fast, safe and convenient. The number of the person on man car depends on the angle of mine. In order to ensure the safety of the personnel, the man car is equipped with brake device that can safety brake when it comes to wire rope fracture or obstructions.
MAIN PARAMETER OF|
specification |
XRC10-6/6S |
XRC10-6/6W |
XRC15-6/6S |
XRC15-6/6W |
||
|
Max traction |
60 |
|||||
|
Max speed |
4 |
|||||
|
Roadway slope |
10-30 |
|||||
|
Curve radius |
horizontal direction |
12 |
||||
|
Vertical direction |
12 |
|||||
|
Rail gauge |
600 |
|||||
|
Numbers of people |
10 |
10 |
15 |
15 |
||
|
net weight |
First car S |
1520 |
- |
1595 |
- |
|
|
Tail car W |
- |
1555 |
- |
1630 |
||
|
Dimention |
Width mm B |
1050 |
1050 |
1226 |
1226 |
|
|
Height mm H |
1474 |
1474 |
1474 |
1474 |
||
