The XRB15 tilt-inclined man car is suitable for use in inclined shafts with a pitch angle of no more than 40 degrees. This type of locomotive is used for winch traction and safely transports personnel
Contact Us Product Center

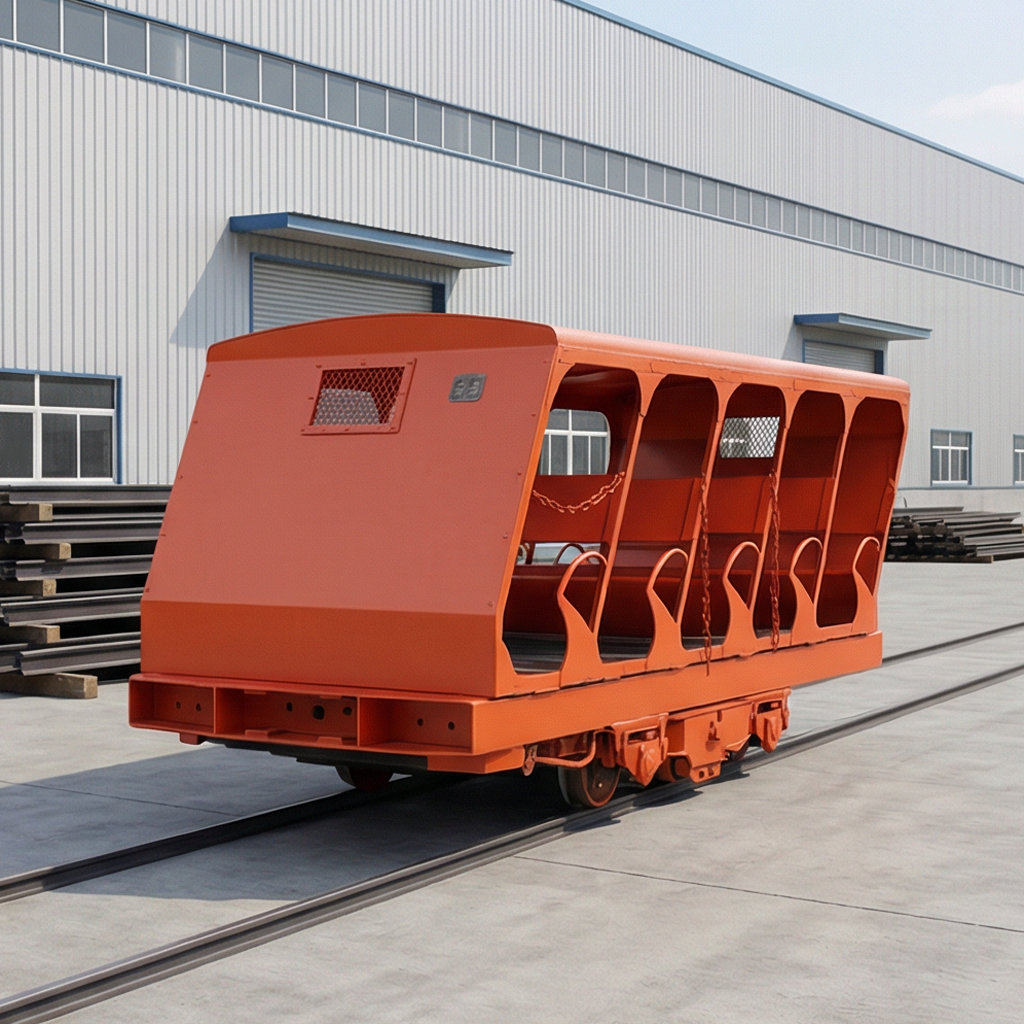

The XRB15 tilt-inclined man car is suitable for use in inclined shafts with a pitch angle of no more than 40 degrees. This type of locomotive is used for winch traction and safely transports personnel in deviated wells. This type of brake suspension for people and vehicles is divided into two parts: automatic and manual. When the traction winch malfunctions or the traction rope breaks, the automatic part of the brake can work quickly and efficiently to realize the buffering and stopping of the holding rail. When the human-vehicle is in operation, when the vehicle-vehicle driver finds that there are obstacles in front of the human-vehicle operation, manual brake parking may be implemented to ensure the safety of the occupants.
The XRB15 inclined person vehicle is an important safety device for mine inclined transport personnel. The entire train consists of one vehicle (S1), two vehicles (S2), and a certain number of trailers (G) and tail vehicles (W). Each person has 15 persons. According to the inclination angle of the inclined shaft and the difference in lifting capacity, the number of train trains is generally composed of 3-5 sections, and the number of passengers is 45-75. The XRB15 type of inclined-rail vehicle is suitable for rails with 600mm gauge, 18kg/m, 22kg/m, 24kg/m, wooden sleepers, cement pillows, and cement monolithic track beds with an inclination of 10. -40. . An inclined shaft without the danger of coal dust and gas explosion.
MAIN PARAMETER OFThe maximum traction : 60KN
Applicable roadway slope: 10-40 degrees.
Applicable track gauge and sleeper type: 600mm cement sleeper,
The model of rails for wooden sleepers: 18kg/m, 22kg/m, 24kg/m
Maximum operating speed: 4m/s
The number of people per section is: 15 people
The biggest buffer distance is: 40m
The external dimensions of each section are: 4350*1220*1540mm
PHOTOS OF
